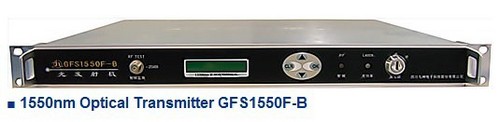

Optical Transmitter

Product Description

Features

DFB laser External Modulator. 2 optical outputs, 7/9/10/11dBm available. SBS Threshold 13/16/18dBm adjustable. Wide AGC range -10~+10dB. ATC, APC functioned. Redundant power supply: AC 85~265V and DC -36~-60V. Supports remote control with JIUZHOU HFC Net-Managing Software via RJ45. 19, 1RU. Optical Unit Specifications Wavelength Nm 1540~1560 Spectrum Width MHz 1 Number of Outputs - 2 Output Power dBm 7/9/10/11 Flatness dB ±0.75 SBS Threshold dBm 13/16/18 adjustable Reflection Loss dB 45 Power Stability dB ±0.5 Connector - SC/APC, FC/APC Optical Link Performance (Optical receiving power @ 0dBm) C/N dB 53 C/CTB dB 65 C/CSO dB 65 RF Frequency MHz 47~862 Return Loss dB 18 Input Level dBV 75~85 Suggested Input Level dBV 80 AGC Range dB -10~+10 RF Test Point dB -20 (Relative to input level) Connector - F connector Others Working Temperature  -10 ~ +50 Power Supply V AC 85~265V, 50Hz DC -36 ~ -60V Power Consumption W 75 Size mm 482—340—44
